1R1G1B P2.5 Advertising LED Wall Indoor LED Billboard

Ask Lasest Price
Brand Name :	Indoor Full Color LED Display
Model Number :	Indoor P2.5 full color led module
Price :	Negotiation
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	5000 Square Meters per Month
Delivery Time :	7-12 working days after received your payment
Certification :	CCC FC CE FC CB ROHS

Add to Cart

Product Details
Company Profile

1R1G1B P2.5 Advertising LED Wall Indoor LED Billboard

320x160mm SMD LED Module P2.5 Indoor Fixed Full Color LED Display

Specification

ITEM P2.5	Technical parameter
Module	Module Dimension	(W)320mm*160mm(H)
	Pixel pitch	2.5mm
	Pixel Density	160000pixels/M2
	Pixel configuration	1R1G1B
	LED specification	SMD2121
	Pixel resolution	(W)128*64(H)
	resolution	8192dots
	Current	3.5-4A
	Drive type	1/32 Scanning
	Refresh frequency	≥3840HZ
	Brightness	550cd/ M2
	Optimum Viewing Distance(m)	2-15m
	Max power consumption	689W/㎡
	Ave power consumption	229W/㎡
	Working Temperature	-20℃ to +60℃
	Working Voltage	5V
	Display Card	DVI Graphics
	IP Grade	IP31

Due to the particularity of the LED rental outdoor screen, the standardized box structure is generally adopted, which is easy to disassemble, light in weight and convenient in transportation. LED rental display, using die-cast aluminum box design, light, thin, fast installation is its most important feature. The cabinet is light and thin, can be quickly installed, removed and transported, and is suitable for large-area rental and fixed installation applications.

FULL FRONT MAINTENANCE

P2.5mm Magnesium Alloy Indoor Rental LED Screen can be maintenanced from the front side. 100% frontal accessable feature make the LED display is very convenient to assable and disassamble, the module is magnetic and is easy to take out in a few seconds, save much time and labor.

CURVED INSTALLATION

Magnesium alloy P4.81 indoor LED display is designed to support curved installation to meet various display applications and environments. Curved design with every 2.5° between -10°and 10° to make the LED display can be installed with many shapes like circle, arc, curve, and more.

Features:

1. With excellent equality and consistency of light, able to solve the problem of mosaic commendably.

2. With clear, exquisite and real display effect.

3. With big viewing angle to the horizontal line and vertical line, able to be watched at every angle, no picture change, no color excursion.

4. The cost of maintenance is low, as every LED lamp can be replaced.

5. High precision: seamless splicing though CNC machine
6. Seamless connection:The aluminum die-casting technology,togrther with the high precision CNC procession,

makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
7. Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
8. Low brightness and Hight gray scale:16Bit gray scale to bring excellent performance when brightness is reduced to 20%.

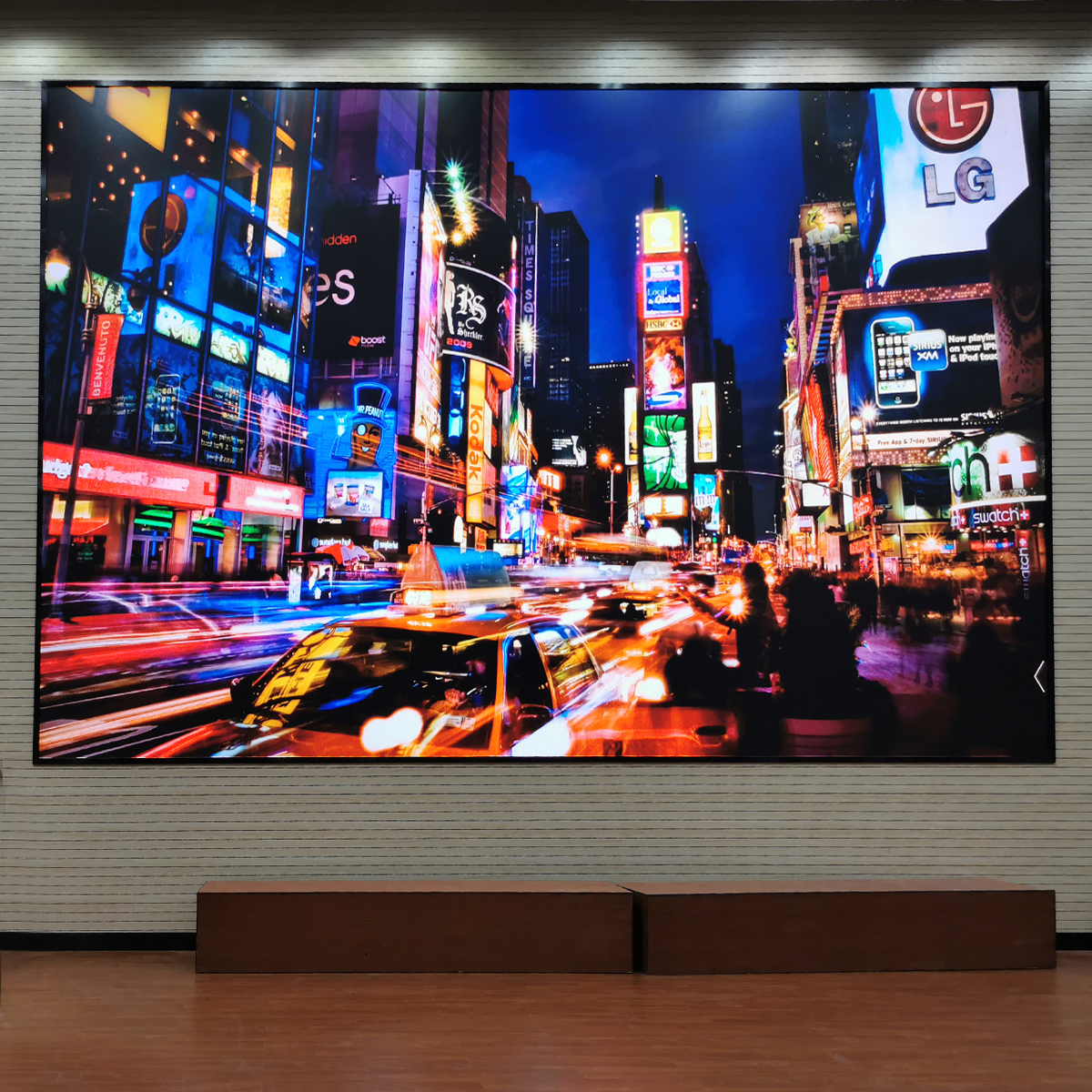

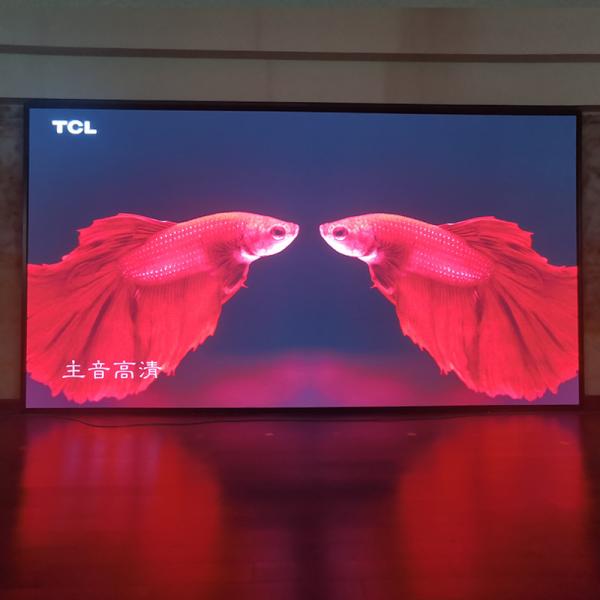

Case Presentation

1R1G1B P2.5 Advertising LED Wall Indoor LED Billboard

Company Profile

Packaging And Shipping

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

● If your order is not big, we can send them to you by TNT,DHL UPS or EMS etc.

● If your order is big, we'll advise you to use Air or Sea shipping through your nominated forwarder agent. Our long-term cooperated agent is also available..

FAQ

1. How can I get the price?

-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote."

2. Can I buy samples placing orders?

-Yes.Please feel free to contact us.

3. What is your lead time?

-It depends on the order quantity and the season you place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

4. What is your payment term?

-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.

5. What is the shipping method?

-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.

6. How do you make our business long-term and good relationship?

-1. We keep good quality and competitive price to ensure our customers benefit ;

-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
