Shopping Mall Support Customization Commercial LeoAdvertising Outdoor Screen Display

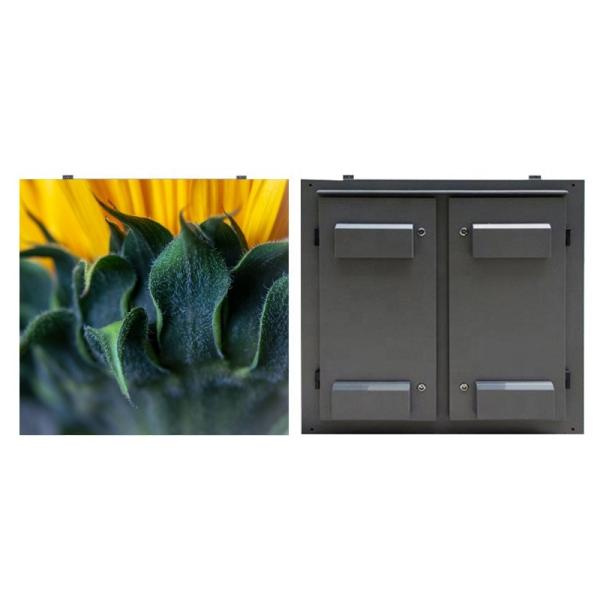

1.A LED video wall is a display system consisting of multiple LED panels, usually arranged in a grid or matrix pattern, that work together to create a larger, seamless image or video display. The panels are made up of numerous small LED (light-emitting diode) lights, which emit bright, vibrant colors and can be controlled to display different images or videos.

2.LED video walls are commonly used for outdoor advertising, sports stadiums, music concerts, and other large-scale events where a high-quality and visually striking display is required. They are also used in indoor settings such as conference rooms, retail stores, and museums to create immersive and interactive experiences.

3.The benefits of LED video walls include their high brightness, low power consumption, and long lifespan compared to traditional display technologies. They are also highly customizable, allowing for the creation of unique and eye-catching displays.

4.LED video walls are available in a range of sizes, resolutions, and pixel pitches to suit different applications and budgets. They can be controlled using specialized software and hardware, and can be easily integrated with other audiovisual systems.

1.

2. Pixel spacing	2.5mm	3mm	4mm	5mm	6mm	8mm	10mm
   LED Configuration	SMD1515	SMD1515	SMD2525	SMD2525	SMD2525	SMD3535	SMD3535
   Pixel Density/sqm	160000 dots	111111dots	62500dots	40000dots	27777dots	15625dots	10000dots
   Module Size/mm	320*160	320*160	320*160	320*160	320*160	320*160	320*160
   Cabinet Size	960x960mm	960x960mm	960x960mm	960x960mm	960x960mm	960x960mm	960x960mm
   Cabinet Resolution	384x 384dots	312x 312dots	240x240dots	192x192dots	159x159dots	120x120dots	96x96dots
   IP Rating	IP65	IP65	IP65	IP65	IP65	IP65	IP65
   Brightness /sqm	4000~8000 nits	4000~8000 nits	4000~8000 nits	4000~8000 nits	4000~8000 nits	4000~8000 nits	4000~8000 nits
   View Angle°	140°(HM)	140°(HM)	140°(HM)	140°(HM)	140°(HM)	140°(HM)	140°(HM)
   Gray Scale/bit	16 bit	16 bit	16 bit	16 bit	16 bit	16 bit	16 bit
   Max. Power ConsumptionW	860 W/sqm	786W/sqm	840 W/sqm	750 W/sqm	790 W/sqm	549 W/sqm	650 W/sqm
   Ave. Power ConsumptionW	260W/sqm	235W/sqm	252W/sqm	225 W/sqm	238 W/sqm	160 W/sqm	230 W/sqm
   Refresh Frequency/Hz	1920~3840 Hz	1920~3840 Hz	1920~3840 Hz	1920~3840 Hz	1920~3840 Hz	1920~3840 Hz	1920~3840 Hz
   Operating Power	AC 96~242V 50/60Hz
   Operating Temperature	-40"C ~+60"C
   Operating Humidity	10~90%RH
   Operating Life	100000Hours




Guangzhou Canyi Electronic Technology Co., Ltd. is a high-tech enterprise integrating scientific research, development and engineering, mainly engaged in LED light-emitting devices, full-color LED electronic display screens and LED applications of single and dual color LED electronic display screens. It has a modern scientific research and development base, advanced scientific research, analysis and testing instruments and equipment, and a professional scientific research and installation team, Committed to the industrial development and service of optoelectronic application products in the optoelectronic field.

The main products of Guangzhou Canyi Electronic Technology Co., Ltd. are: indoor and outdoor LED electronic display screen, led sub table paste full-color, led table paste full-color, outdoor full-color, outdoor double primary color, led highway screen, LED large screen, rental stage screen, and the specifications are: Ph1 25 PH1. 53 PH1. 667 PH1. 86 PH2 PH3 PH4 PH5 PH6 PH7. 62 pH8, PH10 and other series, outdoor and indoor single and double color LED display, indoor and outdoor full-color LED display, and nearly 100 kinds of LED products. It involves sports, finance and securities, communications, transportation, industrial control, media advertising, labor market, hospitals and schools, industrial and commercial taxation, technical supervision and many other industries.

Guangzhou Canyi Electronic Technology Co., Ltd. independently developed a variety of system software to adapt to the rapid development of social networking and meet the needs of users. Adhering to the enterprise spirit of "quality-oriented and service-oriented", the company has established a perfect product quality system and after-sales service network. The company strictly abides by the enterprise tenet of "honesty and trustworthiness", and gradually build the company into a large-scale enterprise with comprehensive management ability across industries, regions and international.
